(一)servo cable is a kind of electrical connector commonly used in modern industry, which plays an important role in automation equipment and mechanical systems. By transmitting signals and power to the individual components, the servo harness enables the device to accurately execute instructions and achieve precise control.
(二)Adam main servo cable products
1、Servo Encoder Cable
The servo encoder cable is the connection line between the servo drive and the servo motor, which is used to detect the position and speed of the servo operation, mainly to transmit signals to make the machine run stably.
SD-A2-EB0003台达A2绝对值伺服编码线 750w固定安装驱动线
Advantage:
1.Designed according to Delta standard, the cable is more high-quality and economical
2.100% compatible with Delta systems
3.Oil-resistant PVC sheathing makes the cable particularly suitable for industrial applications
4.Special outer sheath, especially suitable for industrial environment
Applied Range：
1.Equipment installation project; Servo drive and servo integration
Attention：
1.The maximum length of the cable must comply with the manufacturer’s servo motor usage regulations
2.When high flexibility cables are used in tow chain systems, follow the installation guidelines
Product Attribute :
| Product name | Delta absolute coded cable |
| Model number | ASD-A2-EB0003 |
| Length | 3M，customizable |
| Brand | Delta |
| Core Material | Tinned wire |
| Power | Under750W |
| Wire | 0.14*3P |
| Connector | Semi-gold plated SCSI20P+AMP9P+
Battery box lead |
| Sheath Material | PVC |
| Appliction | Industrial, Delta servo series |
| Rated Voltage | 220V |
| Speed response frequency | 50KHz |

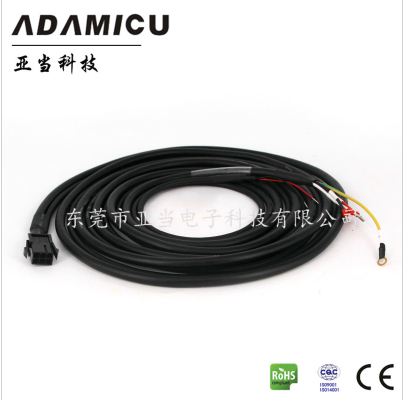

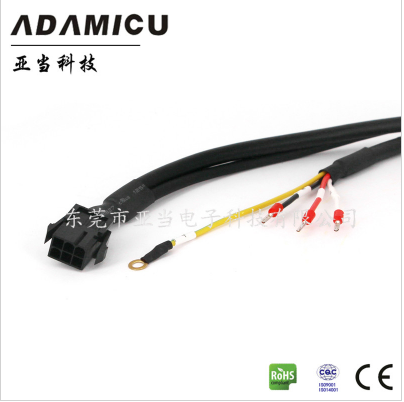

2、Servo Power Cable
The power line is the line that transmits electrical energy, and its role is to complete the transportation of electrical energy. The power line of the servo consists of two parts, one is the connection line between the servo driver and the power supply, and the other is the connection line between the servo driver and the servo motor.
ASD-A2-PW0103台达-A2动力带刹车电缆线 耐弯折低温柔性I/O控制线
Product Attribute :
| Product name | Delta Power Cable |
| Model number | ASD-A2-PW0103 |
| Length | 3M，customizable |
| Brand | Delta |
| Core Material | Tinned wire |
| Power | Under 750w |
| Wire | 0.75*4C+0.3*2C |

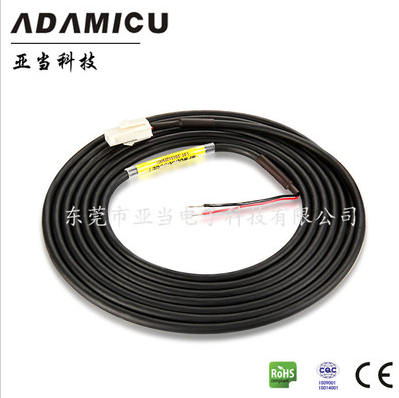

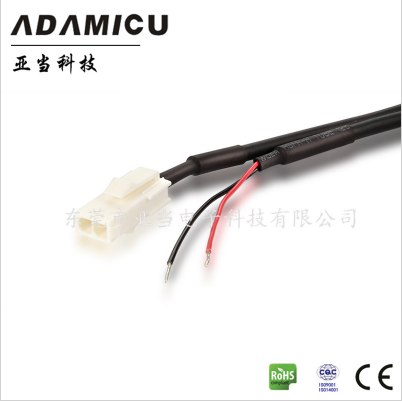

MFMCB0030GET松下伺服电机电缆胶壳AMP2P伺服刹车线（Servo Brake Cable）配线加工定制
Product Attribute ：
|
